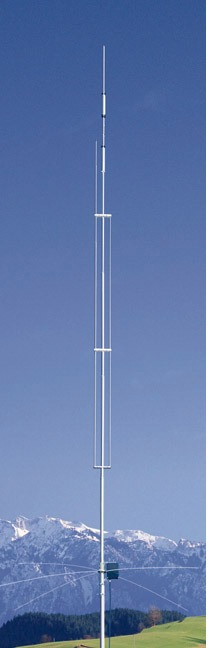

The Cushcraft R6000 multiband vertical covers the 6, 10, 12, 15, 17 and 20 meter bands. The R6000 is a no ground radial antenna. It includes many of the features of the R7000, R7 and R5 antennas. R6000 means excellent performance, easy installation and use, slim silhouette and high reliability. There are no traps used on 6, 10 and 15 meters for maximum efficiency and power handling. Installation is easy and for or typical use, tuning is not required.
This antenna features automatic band changing to any band 6 through 20 meters.
R6000 Specifications
Frequency: 6, 10, 12, 15, 17 and 20 meters
2:1 Bandwidth: 6m 3000, 10m 1700, 12m 100, 15m 450, 17m 100 and 20m 300 kHz
Gain: 3 dBi
Power: 1500 watts CW
VSWR Resonance: 1.2:1 typical
Vertical Radiation Angle: 16
Horizontal Radiation Angle: 360
Connector: UHF
Height: 19 feet (5.8 m)
Weight: 12.5 Lbs (5.6 kg)
Wind Survival: 80 mph
